Lifting Eye Anchor

(0) Reviews

Product Description:

Lifting Eye Anchor is a dedicated cast-in lifting insert for precast concrete elements, manufactured via integral hot forging process. It is embedded within concrete to form a permanent load-bearing lifting point.

The foot end is directly compatible with dedicated precast lifting clutches, while the enlarged anchor head at the opposite end transfers loads evenly through concrete bond force. In addition, reinforcing steel bars can be threaded through the eye opening to create additional mechanical interlock and anchorage resistance.

Technical Specs

Name

Lifting Eye Anchor

Size

1.3T-32T

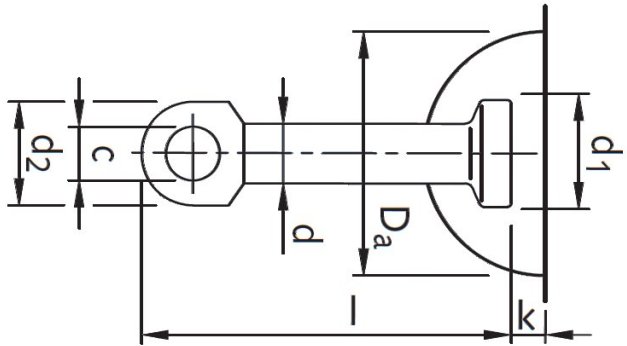

Drawings


CODE

Size

Safe Work Load

L

(mm)

D1

(mm)

d

(mm)

D2

(mm)

AJW-LCEA-01050

1-1.3T

1T

50

19

10

9

AJW-LCEA-01065

65

19

10

9

AJW-LCEA-010120

120

19

10

9

AJW-LCEA-02090

1.5-2.5T

2T

90

26

14

13

AJW-LCEA-020120

120

26

14

13

AJW-LCEA-04090

3-5T

4T

90

36

20

18

AJW-LCEA-040120

120

36

20

18

AJW-LCEA-040180

180

36

20

18

AJW-LCEA-080115

6-10T

8T

115

46

28

25

AJW-LCEA-080180

180

46

28

25

AJW-LCEA-200250

20T

16T

250

70

39

37

AJW-LCEA-320300

32T

25T

300

88

50

47


Material

Alloy Steel



Surface Treatment

Raw Color

Electro-galvanized

Hot-dip Galvanized



Safety Factor

3-4

Certification

CE / ISO 9001

Color

Customized Color

Application

Building Construction


Why Choose Us

From material traceability to custom finishing – We deliver what you specify.

Rigorous raw material inspection – Chemical composition analysis and physical property tests are performed on every incoming batch, ensuring 100% compliance with the material test certificate.

In-process dimensional monitoring – Every production step is controlled to guarantee all dimensions meet specified requirements.

Pre-shipment qualification testing – A series of performance and quality tests are conducted before dispatch to ensure every product is fully qualified.

Full traceability – Each product can be traced back to its raw material lot and production records for complete accountability.

Visual progress reporting – Photos are taken at each critical stage and shared proactively, keeping you fully informed.

wcs-1

Application Fields

This lifting system is widely applied across global precast concrete factories and construction sites, covering residential, commercial, industrial building and municipal infrastructure projects.

Trust & Support

Engineered for precast concrete handling, our Lifting Clutch is designed to pair seamlessly with Lifting anchors. Manufactured from high-strength alloy steel, they deliver secure connections, exceptional load capacity, and extended durability—even under the most demanding construction conditions.Engineered for precast concrete handling
