Double Head Lifting Anchor

(0) Reviews

Product Description:

Double Head Lifting Anchor (Twin‑Ball Anchor) adds a second spherical head to boost load capacity and stability, ensuring even stress distribution and reduced surface stress concentration.

Technical Specs

Name

Double Head Lifting Anchor

Size

1.3-5T

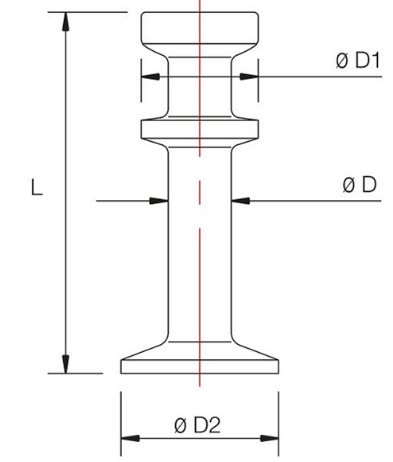

Drawings


CODE

Size

Safe Work Load

L

(mm)

D1(mm)

D

(mm)

D2(mm)

AJW-LCDLA-01055

1-1.3T

1T

55

19

10

25

AJW-LCDLA-01065

65

19

10

25

AJW-LCDLA-01085

85

19

10

25

AJW-LCDLA-010120

120

19

10

25

AJW-LCDLA-010240

240

19

10

25

AJW-LCDLA-02055

1.5-2.5T

2T

55

26

14

35

AJW-LCDLA-02065

65

26

14

35

AJW-LCDLA-02085

85

26

14

35

AJW-LCDLA-020110

110

26

14

35

AJW-LCDLA-020120

120

26

14

35

AJW-LCDLA-020170

170

26

14

35

AJW-LCDLA-04075

3-5T

4T

75

36

20

50

AJW-LCDLA-04085

85

36

20

50

AJW-LCDLA-040120

120

36

20

50

AJW-LCDLA-040180

180

36

20

50

AJW-LCDLA-040240

240

36

20

50


Material

Alloy Steel



Surface Treatment

Raw Color

Electro-galvanized

Hot-dip Galvanized



Safety Factor

≥3

Certification

CE / ISO 9001

Color

Customized Color

Application

Building Construction


Why Choose Us

From material traceability to custom finishing – We deliver what you specify.

Rigorous raw material inspection – Chemical composition analysis and physical property tests are performed on every incoming batch, ensuring 100% compliance with the material test certificate.

In-process dimensional monitoring – Every production step is controlled to guarantee all dimensions meet specified requirements.

Pre-shipment qualification testing – A series of performance and quality tests are conducted before dispatch to ensure every product is fully qualified.

Full traceability – Each product can be traced back to its raw material lot and production records for complete accountability.

Visual progress reporting – Photos are taken at each critical stage and shared proactively, keeping you fully informed.

wcs-1

Application Fields

This lifting system is widely applied across global precast concrete factories and construction sites, covering residential, commercial, industrial building and municipal infrastructure projects.

Trust & Support

Engineered for precast concrete handling, our Lifting Clutch is designed to pair seamlessly with Lifting anchors. Manufactured from high-strength alloy steel, they deliver secure connections, exceptional load capacity, and extended durability—even under the most demanding construction conditions.Engineered for precast concrete handling
