Single Head Connector Box Loop

(0) Reviews

Product Description:

Connector Box Loop (also known as Wire Loop Box) is a concealed lifting solution designed specifically for precast concrete elements. The product combines a high-strength galvanized wire rope loop with a robust steel storage box, embedded into the concrete component to provide a safe and convenient lifting connection point. When the box cover is opened, the wire rope loop automatically springs into its preset position—no bending required—ready for direct attachment to a crane hook or rigging for lifting operations. It is available in single-loop and double-loop configurations.

Download the product brochure

Inquire Now

Product Description

Name	Single Head Connector Box Loop
Size	M/RD12-52

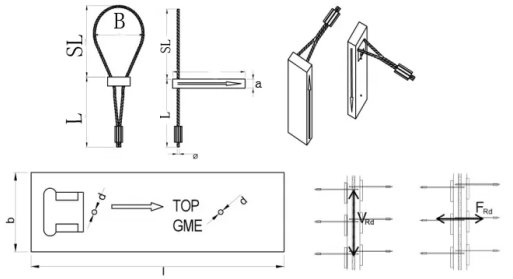

Drawings

CODE	SL (mm)	L (mm)	H (mm)	B (mm)	Фd (mm)
AJW-BL-60	60	276	160	50	6
AJW-BL-80	80	296
AJW-BL-100	100	316
AJW-BL-120	120	336
AJW-BL-140	140	528	200	70	8

Certification	CE / ISO 9001
Color	Customized Color
Application	Building Construction

Why Choose Us

From material traceability to custom finishing – We deliver what you specify.

Rigorous raw material inspection – Chemical composition analysis and physical property tests are performed on every incoming batch, ensuring 100% compliance with the material test certificate.

In-process dimensional monitoring – Every production step is controlled to guarantee all dimensions meet specified requirements.

Pre-shipment qualification testing – A series of performance and quality tests are conducted before dispatch to ensure every product is fully qualified.

Full traceability – Each product can be traced back to its raw material lot and production records for complete accountability.

Visual progress reporting – Photos are taken at each critical stage and shared proactively, keeping you fully informed.

Application Fields

This lifting system is widely applied across global precast concrete factories and construction sites, covering residential, commercial, industrial building and municipal infrastructure projects.
