Round Base Swivel Lifting Clutch

(0) Reviews

Product Description:

The Swivel Lifting Clutch is a high-performance lifting connector specially developed for embedded Coil Lifting Inserts. Fabricated from high-grade alloy steel by drop-forging and integral heat treatment, it provides exceptional strength and impact resistance for heavy-duty, repetitive lifting tasks. Its round-base design enables not only 180° vertical articulation but also continuous 360° horizontal rotation, allowing the bail to self-align with sling direction, which effectively removes lateral bending stresses and prolongs the service life of both the clutch and its matching coil insert.

Product Description

Name

Round Base Swivel Lifting Clutch

Size

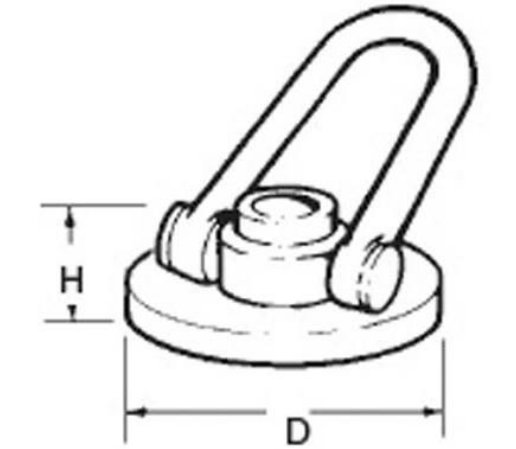

Drawings


CODE

SIZE

SWL

Tension

(lbs)

L

(mm)

D

(mm)

H

(mm)

AJW-CLRLC-34

3/4“

2000

206

131

50

AJW-CLRLC-01

1”

AJW-CLRLC-0114

1-1/4’

3000

229

178

70

AJW-CLRLC-0112

1-1/2”


Material

Alloy Steel



Surface Treatment

Electro-galvanized

Powder coated

Safety Factor

 ≥5

Certification

CE / ISO 9001

Color

Customized Color

Application

Building Construction


Why Choose Us

From material traceability to custom finishing – We deliver what you specify.

Rigorous raw material inspection – Chemical composition analysis and physical property tests are performed on every incoming batch, ensuring 100% compliance with the material test certificate.

In-process dimensional monitoring – Every production step is controlled to guarantee all dimensions meet specified requirements.

Pre-shipment qualification testing – A series of performance and quality tests are conducted before dispatch to ensure every product is fully qualified.

Full traceability – Each product can be traced back to its raw material lot and production records for complete accountability.

Visual progress reporting – Photos are taken at each critical stage and shared proactively, keeping you fully informed.

Application Fields

This lifting system is widely applied across global precast concrete factories and construction sites, covering residential, commercial, industrial building and municipal infrastructure projects.

Trust & Support

Engineered for precast concrete handling, our Lifting Clutch is designed to pair seamlessly with Lifting anchors. Manufactured from high-strength alloy steel, they deliver secure connections, exceptional load capacity, and extended durability—even under the most demanding construction conditions.Engineered for precast concrete handling
