Two Hole Anchor

(0) Reviews

Product Description:

The Two Hole Anchor is an essential component of spread anchor systems, engineered for embedment in precast concrete elements to establish secure lifting points. It is used in conjunction with a recess former, which creates a cavity within the concrete to facilitate a seamless interface with a ring clutch, enabling safe and efficient lifting operations.

Download the product brochure

Inquire Now

Product Description

Name	Two Hole Anchor
Size	2.5-26T

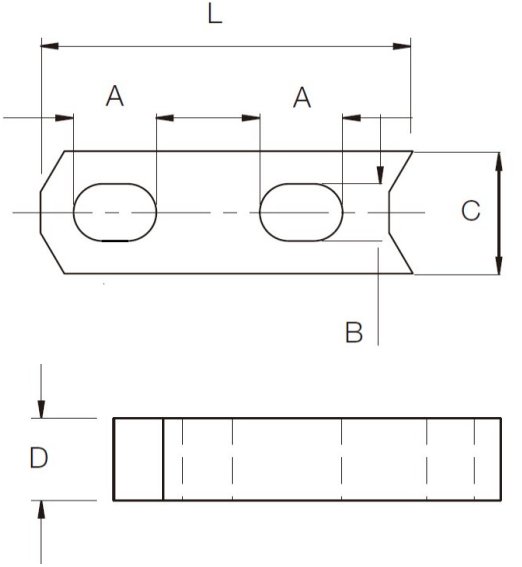

Drawings

CODE	Size	Safe Work Load		L （mm)	W (mm)	T (mm)
CODE	Size	Tons	lbs.	L （mm)	W (mm)	T (mm)
AJW-RCTH-01306090	2-3T	1.3T	2600	90	30	6
AJW-RCTH-02010090		2T	4000	90	30	10
AJW-RCTH-03010120		3T	6000	120	40	10
AJW-RCTH-04012120	4-6T	4T	8000	120	40	12
AJW-RCTH-05015120	4-6T	5T	10000	120	40	15
AJW-RCTH-08016160	8-12T	8T	16000	160	90	16
AJW-RCTH-10020165	8-12T	10T	20000	165	60	20
AJW-RCTH-14020240	12.5-26T	14T	28000	240	80	20
AJW-RCTH-22028300		22T	44000	300	90	28
AJW-RCTH-26030300		26T	52000	300	120	30

Material	Alloy Steel
Surface Treatment	Raw Color Electro-galvanized Hot-dip Galvanized
Safety Factor	≥3
Certification	CE / ISO 9001
Application	Building Construction

Why Choose Us

From material traceability to custom finishing – We deliver what you specify.

Rigorous raw material inspection – Chemical composition analysis and physical property tests are performed on every incoming batch, ensuring 100% compliance with the material test certificate.

In-process dimensional monitoring – Every production step is controlled to guarantee all dimensions meet specified requirements.

Pre-shipment qualification testing – A series of performance and quality tests are conducted before dispatch to ensure every product is fully qualified.

Full traceability – Each product can be traced back to its raw material lot and production records for complete accountability.

Visual progress reporting – Photos are taken at each critical stage and shared proactively, keeping you fully informed.

Application Fields

This lifting system is widely applied across global precast concrete factories and construction sites, covering residential, commercial, industrial building and municipal infrastructure projects.

Trust & Support

Engineered for precast concrete handling, our Lifting Clutch is designed to pair seamlessly with Lifting anchors. Manufactured from high-strength alloy steel, they deliver secure connections, exceptional load capacity, and extended durability—even under the most demanding construction conditions.Engineered for precast concrete handling
