Spread Anchor

(0) Reviews

Product Description:

Spread anchors are among the most widely used lifting anchors for precast concrete elements. Cast directly into the concrete, they provide reliable lifting points for handling and transport.

Download the product brochure

Inquire Now

Product Description

Name

Spread Anchor

Size

2.5-26T

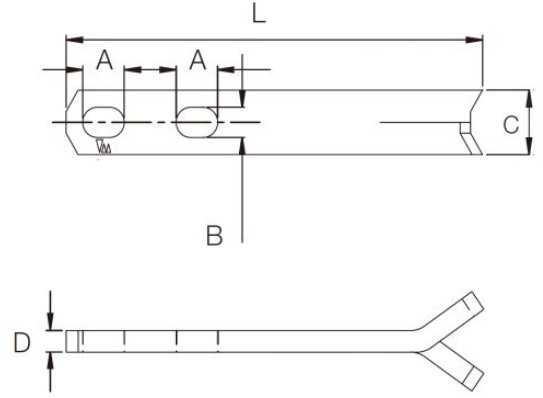

Drawings

CODE	SIZE		Safe Work Load				L(mm)		W(mm)		T(mm)
			Tons		lbs.
AJW-RCSA-007110		2-3T		0.7T		1400		110		30		5
AJW-RCSA-014110				1.4T		2800		110				6
AJW-RCSA-014160								160
AJW-RCSA-020130				2T		4000		130				8
AJW-RCSA-020160								160
AJW-RCSA-020210								210
AJW-RCSA-025150				2.5T		5000		150				10
AJW-RCSA-025200								200
AJW-RCSA-025250								250
AJW-RCSA-030160				3T		6000		160		40		10
AJW-RCSA-030200								200
AJW-RCSA-030280								280
AJW-RCSA-040180		4-6T		4T		8000		180		40		12
AJW-RCSA-040240								240
AJW-RCSA-040320								320
AJW-RCSA-050180				5T		10000		180				15
AJW-RCSA-050240								240
AJW-RCSA-050400								400
AJW-RCSA-080260		8-12T		8T		16000		260		60		16
AJW-RCSA-080300								300
AJW-RCSA-080420								420
AJW-RCSA-100300				10T		20000		300				20
AJW-RCSA-100370								370
AJW-RCSA-100520								520
AJW-RCSA-140370		12.5-26T		14T		28000		370		80		20
AJW-RCSA-140460								460
AJW-RCSA-220500				22T		44000		500		90		28

Material	Alloy Steel
Surface Treatment	Raw Color Electro-galvanized Hot-dip Galvanized
Safety Factor	≥3
Certification	CE / ISO 9001
Color	Customized Color
Application	Building Construction

Why Choose Us

From material traceability to custom finishing – We deliver what you specify.

Rigorous raw material inspection – Chemical composition analysis and physical property tests are performed on every incoming batch, ensuring 100% compliance with the material test certificate.

In-process dimensional monitoring – Every production step is controlled to guarantee all dimensions meet specified requirements.

Pre-shipment qualification testing – A series of performance and quality tests are conducted before dispatch to ensure every product is fully qualified.

Full traceability – Each product can be traced back to its raw material lot and production records for complete accountability.

Visual progress reporting – Photos are taken at each critical stage and shared proactively, keeping you fully informed.

Application Fields

This lifting system is widely applied across global precast concrete factories and construction sites, covering residential, commercial, industrial building and municipal infrastructure projects.
