Lifting Clutch: The Key to Safe and Efficient Precast Concrete Handling

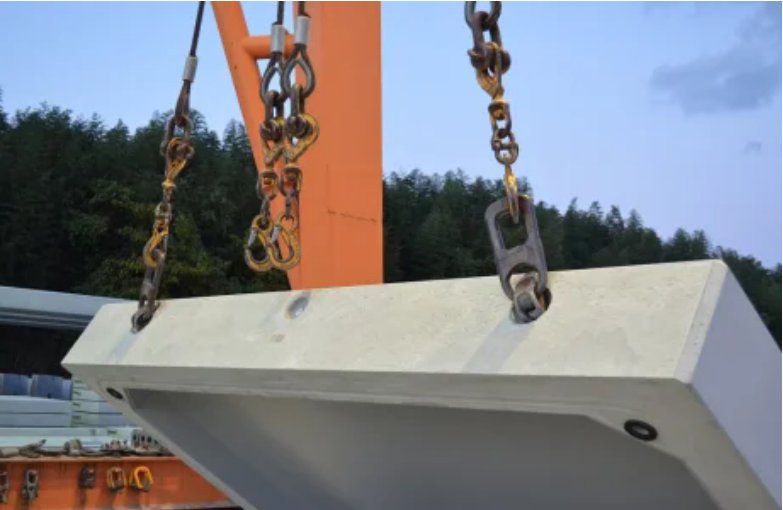

In the precast concrete industry, every lift counts. Whether you're demoulding a wall panel, tilting a beam, or positioning a slab on site, the connection between the crane and the concrete element is critical. That connection is made possible by one small but essential component: the lifting clutch.

If you work with precast concrete, you've likely seen or used one. But do you know how it works, why it matters, and how to choose the right one? In this article, we'll take a closer look at the lifting clutch — what it is, how it functions, and what to consider when selecting one for your operation.

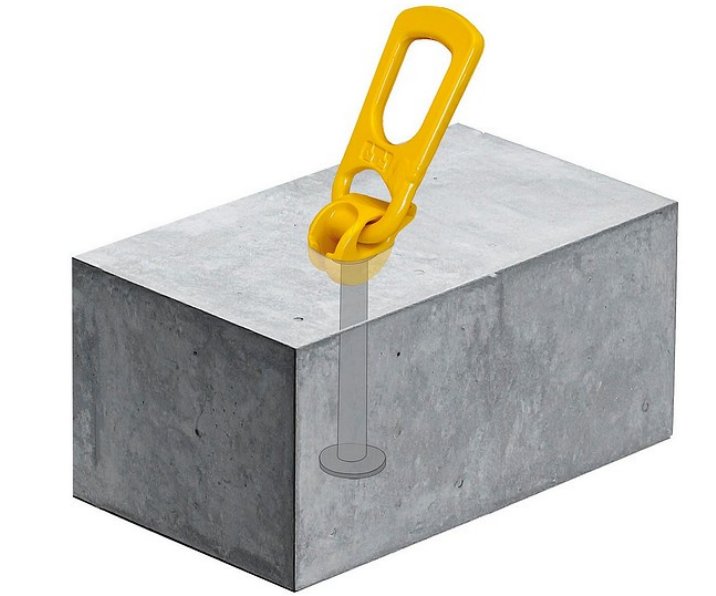

What Is a Lifting Clutch?

A lifting clutch is a mechanical device that connects a crane or lifting system to an anchor embedded in a precast concrete element. It is designed to engage quickly and securely with the anchor head — typically a spherical or mushroom-shaped head — and to release just as quickly once the lift is complete.

The key advantage of a lifting clutch is that it allows for remote or hands-free release. Once the element is placed, the operator can unlock the clutch from a safe distance, usually by pulling a release cord. This eliminates the need for workers to climb onto elements or reach into tight spaces to unhook, significantly improving on-site safety.

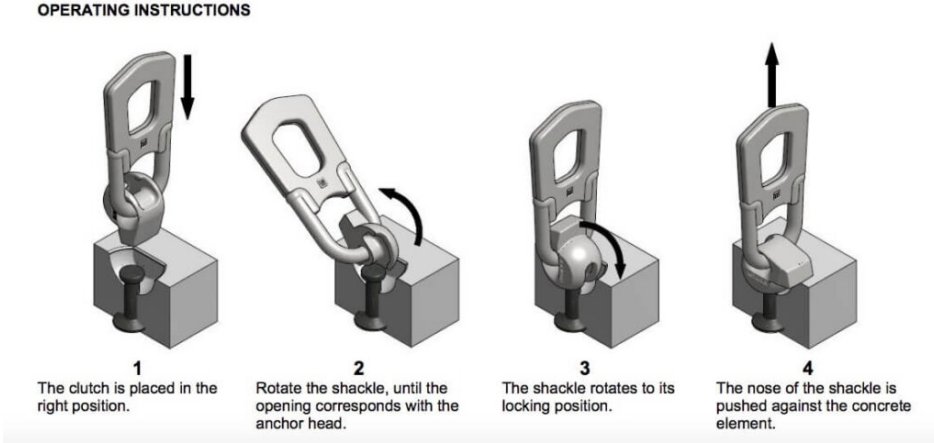

How Does a Lifting Clutch Work?

A lifting clutch operates through a simple but reliable mechanical locking system:

Positioning – The clutch is lowered onto the anchor head embedded in the concrete element. The anchor head sits inside a recess formed during casting.

Engagement – As the clutch is pressed down onto the anchor head, internal locking components — such as steel balls, pins, or a rotating locking ring — snap into place around the anchor head.

Lifting – Once engaged, the clutch holds the anchor securely. As the crane lifts, the clutch bears the full load of the concrete element. The locking mechanism is designed so that the greater the load, the stronger the grip.

Release – After the element is positioned, the operator pulls a release cord or actuates a release mechanism. The internal lock disengages, and the clutch can be lifted away, leaving the anchor behind in the concrete.

This four-step cycle takes only seconds, which is why lifting clutches are so widely used in high-volume precast production.

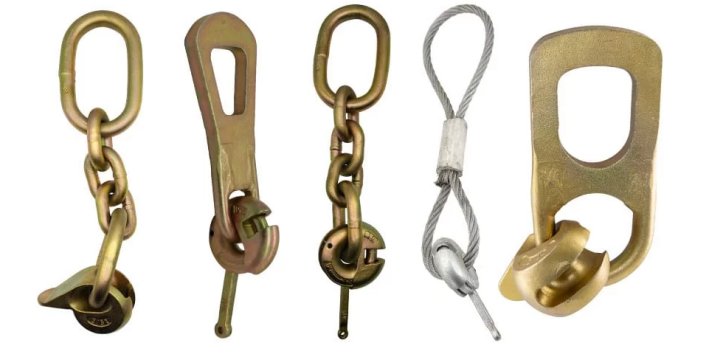

Types of Lifting Clutches

There are many types of lifting clutches. According to the matching anchor, they can be mainly divided into two categories: Lifting Anchor Clutch and Spread Anchor Clutch.

The Lifting Anchor Clutch is designed for standard spherical-head lifting anchors. It has a wide range of applications and is commonly used for lifting wall panels, slabs, and general precast elements.

The Spread Anchor Clutch is used with expanding anchors. Under load, the anchor expands automatically, increasing the anchoring area. It is especially suitable for thin-walled elements and low-strength concrete where higher load-bearing capacity is required.

In addition, based on the material or the connecting rigging, lifting clutches can also be classified into standard type (made of standard alloy steel), wire rope type, and chain type, to meet different lifting conditions and connection requirements.

Key Factors to Consider When Choosing a Lifting Clutch

1. Compatibility with Your Anchor System

This is the most important rule in precast lifting: always use a clutch and anchor from the same manufacturer and the same product series. Mixing brands or systems can lead to improper fit, load failure, and catastrophic accidents. Never assume that a clutch will work with an anchor just because they look similar.

2. Working Load Limit (WLL)

Every clutch has a rated working load limit. Choose a clutch whose WLL exceeds the maximum weight of the elements you plan to lift, taking into account:

The weight of the concrete element

Adhesion forces during demoulding

Dynamic loads during lifting and transport

Load distribution in multi-point lifts

3. Lifting Angle

Lifting clutches are typically rated for axial (vertical) loads, but many applications require angled lifting — for example, when tilting a wall panel from horizontal to vertical. Check the manufacturer's load reduction chart to determine the safe WLL at your required lifting angle.

4. Release Mechanism

Consider how the clutch will be released in your specific application:

Rope release – The most common method, allowing remote release from ground level.

Manual release – Requires direct access to the clutch; suitable when the element is within reach.

Automatic release – Some systems disengage automatically once the load is transferred; useful in specialized applications.

5. Durability and Maintenance

Look for clutches made from high-strength alloy steel, with hardened load-bearing components. In demanding environments, a quality clutch should withstand hundreds or even thousands of lifting cycles. Regular inspection is essential — check for wear, deformation, cracks, or corrosion before every use.

Safety: The Non-Negotiable Priority

Lifting clutches operate under extreme loads. A failure can result in dropped elements, equipment damage, serious injuries, or fatalities. Here are the golden rules for safe operation:

Never mix brands. Use only matched anchor and clutch systems from the same manufacturer.

Respect the WLL. Never exceed the rated working load limit, and apply the correct reduction factor for angled lifts.

Check concrete strength. Never lift a precast element until the concrete has reached the specified strength. Lifting too early can cause anchor pull-out or concrete failure.

Inspect before every use. Look for cracks, wear, deformation, or missing components. A damaged clutch must be removed from service immediately.

Train your operators. Everyone involved in lifting operations should understand how the clutch works, how to engage and release it properly, and what to do in case of an emergency.

Why the Right Lifting Clutch Matters

A lifting clutch may be a small component, but it plays an outsized role in precast concrete operations. The right clutch:

Improves safety by enabling remote release and reducing the need for workers to climb on elements.

Increases productivity with fast connection and release times, shortening cycle times in the factory and on site.

Reduces cost by minimizing labor requirements and extending the service life of your lifting system.

Ensures reliability when properly matched with the correct anchor system and maintained according to the manufacturer's instructions.

Conclusion

The lifting clutch is one of the most important tools in precast concrete handling. It bridges the gap between the crane and the concrete element, enabling safe, fast, and repeatable lifts throughout the production and installation process.

Choosing the right clutch — and using it correctly — is essential for protecting your workers, your products, and your productivity. Always work with a trusted manufacturer, follow the technical documentation, and never compromise on safety.

At Aojinwo, we offer a complete range of lifting clutches designed to work seamlessly with our lifting anchor systems. Whether you need a standard clutch for daily production or a heavy-duty solution for demanding applications, our team can help you select the right product for your needs.

Contact us today to learn more about our lifting clutch range and how we can support your precast concrete operations.
