Applications of Concrete Inserts in Modern Construction

Concrete inserts are among the most versatile and widely used components in precast concrete and cast-in-place construction. Though small and often hidden within the concrete, they play a critical role in lifting, fixing, connecting, and supporting structural and architectural elements. From precast wall panels to curtain walls, from tunnel segments to industrial equipment, concrete inserts provide the reliable embedded connection points that make modern construction faster, safer, and more efficient.

In this article, we'll explore the main applications of concrete inserts, the types available, and how to choose the right insert for your project.

What Are Concrete Inserts?

Concrete inserts are cast-in hardware components that are embedded into concrete elements before casting. Once the concrete cures, the inserts provide secure, pre-positioned connection points for lifting, anchoring, fixing, or supporting various building components.

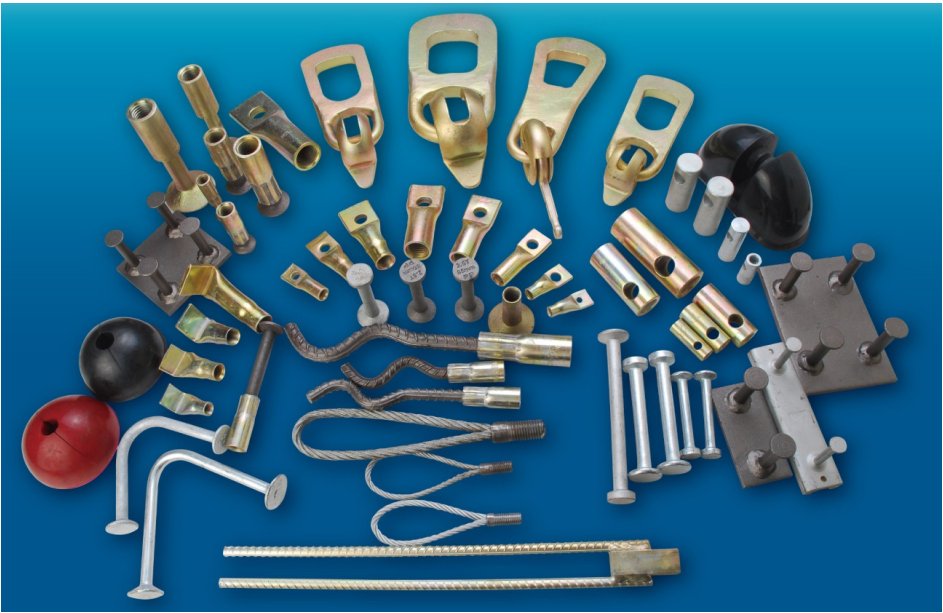

Common types of concrete inserts include:

Steel embed plates – for welding or bolting structural connections

Cast-in channels – for adjustable fixing of curtain walls, cladding, and MEP supports

Lifting sockets – for demoulding, tilting, and installing precast elements

Fixing sockets – for temporary or permanent anchoring of fixtures

Combi lifting sockets – combining lifting and fixing functions in one insert

Insert magnets – for holding inserts securely in formwork during casting

Key Applications of Concrete Inserts

1. Precast Concrete Lifting and Handling

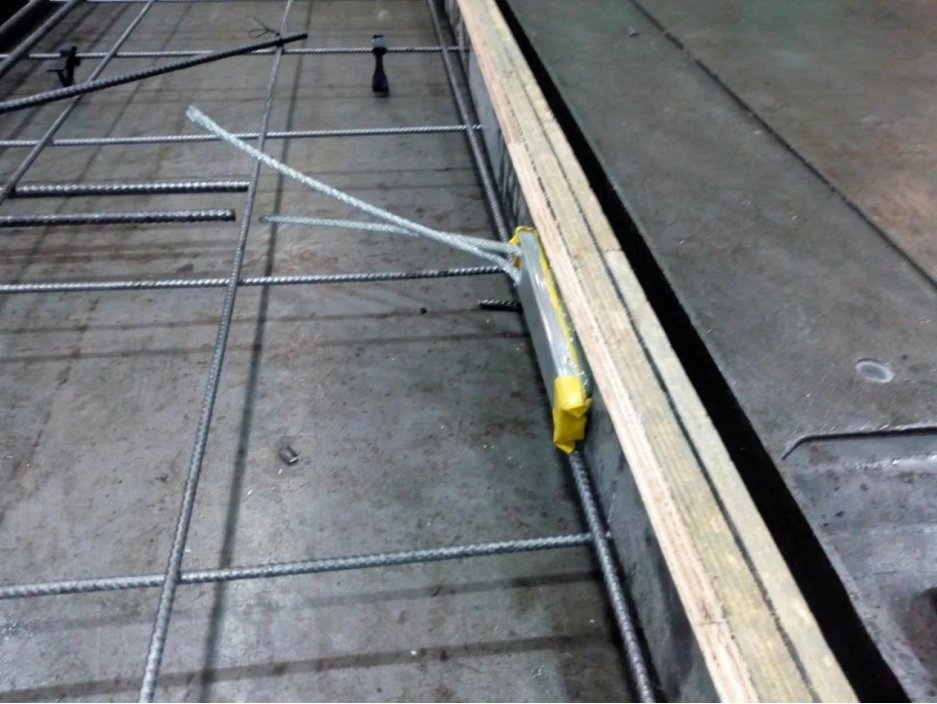

One of the most common applications of concrete inserts is in precast concrete production. Lifting sockets and anchors are embedded into precast elements to provide safe lifting points for demoulding, tilting, transporting, and installing panels, beams, columns, stairs, and slabs.

Because the lifting point is cast into the concrete, no drilling or post-installed anchors are needed. This saves time, reduces labor, and ensures a reliable connection that has been engineered for the specific load.

2. Curtain Wall and Facade Fixing

Cast-in channels are widely used in curtain wall and facade systems. They allow brackets and anchors to be positioned and adjusted after the concrete has cured, accommodating construction tolerances and ensuring precise alignment of the facade.

This flexibility is essential for high-rise buildings, where even small deviations can cause significant installation challenges.

3. Structural Steel Connections

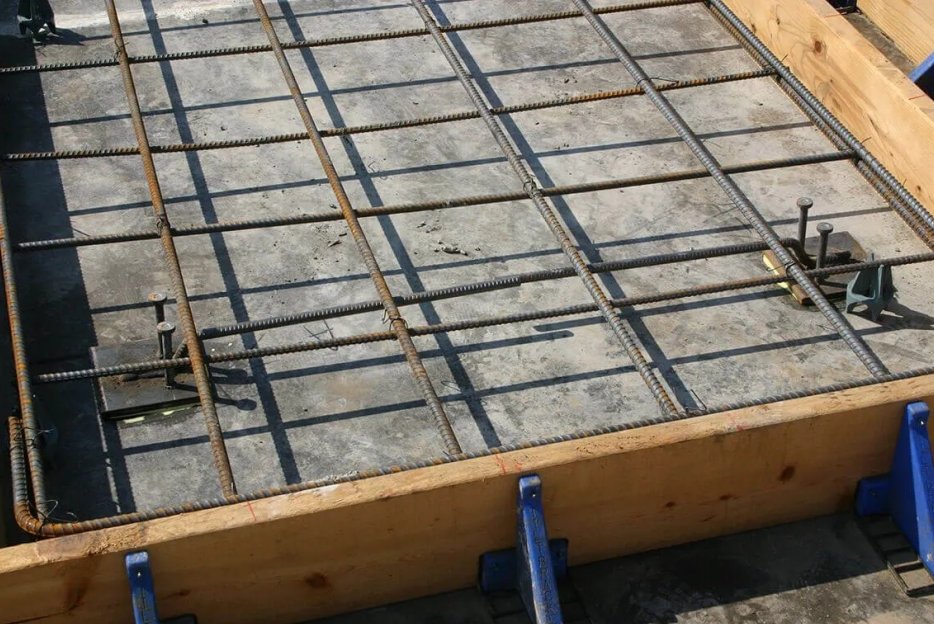

Steel embed plates are embedded into concrete columns, beams, and walls to provide welding or bolting points for structural steel connections. They are commonly used in:

Beam-to-column connections

Bracing attachments

Stair and railing supports

Precast concrete connections

Embed plates transfer loads between steel and concrete, ensuring structural integrity and stability.

4. MEP Supports and Industrial Fixings

Cast-in channels and fixing sockets are used to support mechanical, electrical, and plumbing (MEP) systems. They provide adjustable anchor points for pipe supports, cable trays, HVAC equipment, and industrial machinery.

In industrial facilities, concrete inserts are often used to anchor heavy equipment, conveyor systems, and crane rails, where high load capacity and long-term reliability are critical.

5. Tunnel and Infrastructure Applications

In tunnel segments, bridge elements, and other infrastructure projects, concrete inserts are used for:

Segment lifting and handling

Connecting segments during assembly

Fixing tunnel lining equipment

Anchoring safety barriers and signage

The demanding environment of infrastructure projects requires inserts with high load capacity, corrosion resistance, and long service life.

6. Temporary Works and Safety Systems

Concrete inserts can also be used for temporary works, such as:

Anchoring guardrails and safety barriers

Fixing scaffolding and formwork supports

Securing temporary lifting points

Because they are cast into the concrete, they provide a reliable and reusable connection point that can be used throughout the construction phase.

Why Use Concrete Inserts?

Concrete inserts offer several advantages over post-installed anchors and other connection methods

Time-saving – No drilling, no post-installed anchors, no waiting for adhesives to cure.

Reliable – Engineered and tested for specific loads, with known safety factors.

Adjustable – Cast-in channels allow for movement and adjustment after casting.

Cost-effective – Reduces labor and avoids damage to concrete from drilling.

Durable – Corrosion-resistant finishes ensure long service life.

Versatile – Available in a wide range of sizes, load capacities, and configurations.

How to Choose the Right Concrete Insert

Selecting the right insert depends on several factors:

Application – Lifting, fixing, connecting, or supporting?

Load requirements – Working load limit (WLL) and safety factor.

Concrete strength – Minimum concrete strength at the time of load application.

Embedment depth – Determined by the insert type and load.

Corrosion environment – Indoor, outdoor, coastal, or chemical exposure.

Installation method – How the insert will be fixed to the formwork.

Compatibility – With lifting clutches, eye bolts, or other connection hardware.

Always follow the manufacturer's technical documentation and load tables. Never mix components from different systems unless explicitly approved.

Conclusion

Concrete inserts are small components with a big impact. They enable faster, safer, and more efficient construction by providing reliable embedded connection points for lifting, fixing, and supporting structural and architectural elements.

Whether you are producing precast concrete elements, installing a curtain wall, supporting MEP systems, or building infrastructure, choosing the right concrete insert — and using it correctly — is essential for success.
